Screenshots and visual testing

How the suite tag decides the screenshot policy, where images are stored, and how visual baselines work.

What you'll learn

The screenshot policies, how a tag selects one, how before and after captures are named and stored, how to control cost, and how @visual compares against per-browser baselines.

Policy by tag

automax.project.yaml

screenshots:
  policy:
    default: on-failure
    '@smoke': scenario
    '@regression': step
    '@visual': visual
  fullPage: false
  mask: ['[data-test="shopping-cart-badge"]']
  viewport: { width: 1280, height: 720 }
  onlyOnFailure: false

An environment file may override the section, for example screenshots: { onlyOnFailure: true } on a slow CI target.

Files and attachments

.automax/runs/<runId>/demo-shop/<fingerprint>/r0/
  03-before.png   03-after.png

Each file is also attached to the Playwright test with a stable name (automax/shot/step/03/before), which is what the database ingest and the run viewer pair up. API steps attach request.json and response.json instead.

Sample output

The images below are copied from the latest demo run when the docs are built (scenario "Add a product to the cart", chromium, policy step).

Before: the inventory page before adding a product to the cart — 03-before.png

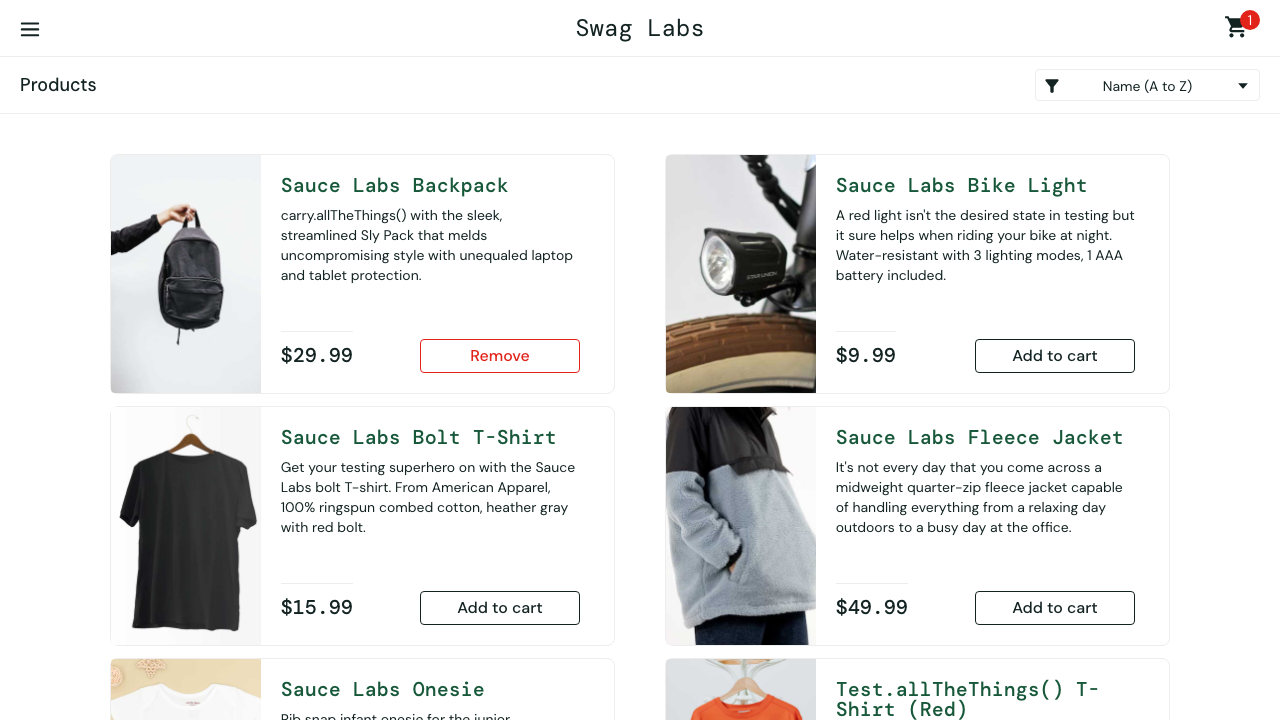

After: the cart badge shows one item — 03-after.png

Scenario end capture — scenario-end.png — every policy except on-failure records the end state

Visual baselines

@ui @regression @visual
Scenario: Inventory page matches the baseline
  Given I am on the inventory page
  Then the page should match the visual baseline "inventory"

Baselines live under projects/<slug>/features/__screenshots__/<browser>/ and are created or refreshed with --update-snapshots. The mask selectors and animations: disabled apply to every capture so dynamic regions do not fail the comparison.

Cost control

onlyOnFailure: true (or the environment variable) keeps the visual baseline check but drops step captures.
Captures are skipped when a step made only API calls and the URL did not change.
Videos and traces stay on Playwright's retain-on-failure and on-first-retry settings.
